Step by Step
Install an additional
Windows Server 2008 R1 server (Gateway) with the specifications given in the
network diagram. Make sure the server is a member of lab.local in the Hoogeveen
site.
Select Run Preparation Tool.
Select Forefront
TMG services and Management
Click Finish
with checkbox selected (start with the installation)
Next

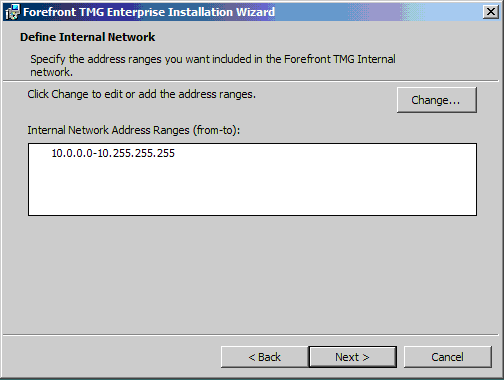

Add 10.0.0.0 range en
click Next
End of the
installation click Finish
Rename the network
connection from the 10.0.1.x network to Internal
and the 192.168.1.x to External.
Start Forefront TMG Management
Select Configure network settings
Select Edge firewall and click Next
Select internal
network en click Next
Select the external
network and click Next and Finish
Select
Configure system settings
Click Next and Finish
Select Define deployment options
Select first option
and click Next
Leave default settings
and click Next
Leave default settings
and click Next
Leave default settings
and click Next
Customer feedback >
Next
Click Close
Select Yes and click Next
Leave default settings
and click Next
Click Next
Leave default settings
and click Next
Leave default settings
and click Next
Leave default settings
and click Next
Select the first
option and enter the administrator account and password. Click Next
Enable 1000 MB cache on the C drive and click Next and Finish
Click Apply
On server1:
Start DHCP MMC
Right click IPV4 and select Set predefined options
Click Add
In name type WPAD
In code type 252
In data type select String and click OK
In string type http://gateway:8080/wpad.dat and click OK
Right click Server options in the scope and select Configure options
Make sure option 252 is enabled
Do the same on server2
Insert the clients in the domain in there
corresponding site.
Install Forefront clients.
